How a Thermoelectric Fridge Operates Efficiently: A Deep Dive

Introduction: Unveiling the Thermoelectric Fridge

In the realm of modern refrigeration, the thermoelectric refrigerator stands as a testament to innovative cooling technology. This device offers an economical, environmentally conscious, and remarkably quiet alternative to traditional compressor-based cooling units. Unlike its conventional counterparts, a thermoelectric fridge operates without the use of refrigerants that can harm the ozone layer, presenting a compelling option for those seeking sustainable solutions. This article aims to demystify the operational principles of thermoelectric fridges, exploring their unique advantages, understanding their efficiency nuances, and guiding you in determining if this technology aligns with your specific cooling needs.

The Science Behind the Chill: Understanding the Peltier Effect

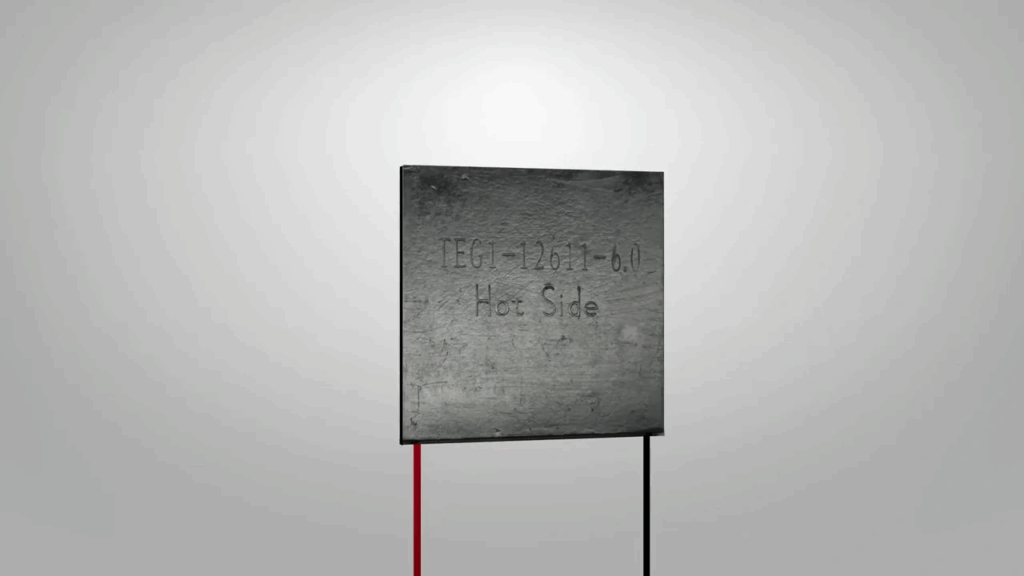

At the heart of every thermoelectric refrigerator lies a fascinating physical phenomenon known as the Peltier effect . This effect describes how an electric current, when passed through a junction of two dissimilar conductors, can create a temperature difference. Specifically, heat is absorbed at one junction, causing it to cool, while simultaneously being released at the other junction, causing it to heat up. This direct conversion of electrical energy into a temperature gradient is what enables thermoelectric devices to cool without any moving parts or circulating refrigerants.

The mechanism involves the movement of charge carriers (electrons or holes) within the semiconductor materials. As these charge carriers move from one material to another across the junction, they either gain or lose energy, which manifests as heat absorption or release. The direction of the electric current dictates the direction of heat transfer, allowing for precise control over the cooling process. This fundamental principle distinguishes thermoelectric cooling from the vapor compression cycle employed by conventional refrigerators, which relies on the mechanical compression and expansion of a refrigerant gas.

Efficiency Unpacked: When Thermoelectric Fridges Shine

While thermoelectric refrigerators offer numerous benefits, understanding their efficiency characteristics is crucial for optimal performance. These devices typically operate most efficiently within a specific temperature range, generally cooling to about 20°C (36°F) below the ambient temperature. Our initial research indicates that most thermoelectric refrigerators perform effectively in temperatures between 51°F and 63°F (approximately 11°C to 17°C). This makes them ideal for applications where moderate cooling is sufficient, such as keeping beverages chilled or storing certain medications.

Le Coefficient de performance (COP) is a key metric for evaluating the efficiency of cooling systems. For thermoelectric coolers, the COP is generally lower than that of compressor-based units, typically ranging from 0.4 to 0.7. This means that for every unit of electrical energy consumed, 0.4 to 0.7 units of cooling are produced. In contrast, compressor refrigerators often boast COPs between 2.0 and 4.0. This difference highlights that while thermoelectric technology is innovative, it is not always the most energy-efficient choice for applications requiring very low temperatures or high cooling capacities.

Optimal operation of a thermoelectric fridge heavily relies on adequate airflow. These units are designed to dissipate heat effectively into their surroundings. Therefore, proper placement is paramount. It is recommended to ensure at least 6 inches of clearance around the device to allow for unrestricted air circulation. Enclosing a thermoelectric refrigerator in a custom cabinet or a confined space will significantly hinder its ability to dissipate heat, leading to reduced cooling performance and potential damage. The ideal working environment for a thermoelectric cooler is an air-conditioned space, where stable ambient temperatures prevent fluctuations from impacting its efficiency.

Advantages Beyond Cooling: Why Choose Thermoelectric?

Beyond their core cooling function, thermoelectric refrigerators offer several compelling advantages that make them a preferred choice for specific applications. One significant benefit is the absence of moving parts in their cooling mechanism. Unlike compressor-based systems that rely on mechanical components like compressors and fans (though thermoelectric units still use fans for heat dissipation), Peltier modules operate silently and are less prone to mechanical wear and tear. This design contributes to their exceptional durability and significantly quieter operation, making them ideal for bedrooms, offices, or other noise-sensitive environments.

From an environmental perspective, thermoelectric refrigerators are a more eco-friendly option. They do not utilize harmful refrigerants such as chlorofluorocarbons (CFCs) or hydrofluorocarbons (HFCs), which are known contributors to ozone depletion and global warming. This makes them a responsible choice for consumers concerned about their carbon footprint.

Their compact size and lightweight design also contribute to their versatility. Thermoelectric coolers are often highly portable, making them suitable for travel, camping, or use in vehicles. Furthermore, the precise control offered by the Peltier effect allows for very accurate temperature regulation, sometimes to within 0.1 degrees Celsius, which is critical for sensitive applications like storing medicines or laboratory samples.

Navigating Limitations: When Thermoelectric Might Not Be Right

Despite their numerous advantages, thermoelectric refrigerators do have limitations that are important to consider. As previously discussed, their cooling capacity is generally lower than that of compressor-based units. If your primary need is to achieve and maintain freezing temperatures, or to cool a large volume of items significantly below ambient temperature, a thermoelectric fridge may not be the most suitable choice. They are best suited for moderate cooling needs and maintaining items at a cool, but not frozen, state.

Another critical limitation is their reduced efficiency in enclosed spaces. The very mechanism that allows them to cool – the transfer of heat from one side of the Peltier module to the other – necessitates effective heat dissipation from the hot side. If the surrounding air is not allowed to circulate freely, the hot side cannot cool down efficiently, which in turn reduces the cooling performance of the cold side. This is why ample clearance around the unit is crucial, and why they are not recommended for built-in installations without proper ventilation systems.

While the initial cost of smaller thermoelectric units can be lower, for a comparable cooling capacity, larger thermoelectric systems can sometimes be more expensive than their compressor counterparts. Furthermore, their lower Coefficient of Performance (COP) means they consume more energy to achieve the same amount of cooling compared to highly efficient compressor units, especially over extended periods or in demanding conditions. This can translate to higher operating costs in the long run if not used in their optimal environment and for their intended purpose.

Optimizing Performance: Tips for Your Thermoelectric Fridge

To maximize the efficiency and lifespan of your thermoelectric refrigerator, consider the following practical tips:

Strategic Placement and Ventilation: Always place your thermoelectric fridge in a location that allows for ample airflow around all sides, especially the rear where the heat sink and fan are typically located. As mentioned, a minimum of 6 inches of clearance is recommended. Avoid placing it in direct sunlight or near other heat-generating appliances.

Understanding Ambient Temperature Impact: Thermoelectric units perform best in cooler ambient environments. If possible, use them in air-conditioned rooms or shaded areas. The greater the difference between the ambient temperature and your desired internal temperature, the harder the unit has to work, and the less efficient it becomes.

Pre-chill Items: For optimal performance, pre-chill items before placing them in the thermoelectric fridge. This reduces the workload on the unit and helps it maintain the desired temperature more effectively.

Regular Cleaning: Keep the fan and heat sink free of dust and debris. A build-up of dust can impede airflow and reduce cooling efficiency. Regular, gentle cleaning will help maintain optimal performance.

Thermoelectric vs. Compressor: A Comparative Look

To further illustrate the differences and help you make an informed decision, here’s a comparative table outlining key features of thermoelectric and compressor refrigerators:

Conclusion: Making an Informed Choice

Thermoelectric refrigerators, with their reliance on the elegant Peltier effect, offer a compelling alternative to traditional cooling methods. They excel in specific niches, providing quiet, environmentally friendly, and portable cooling solutions. Their strengths lie in applications requiring moderate temperature differentials, precise temperature control, and a preference for silent operation.

However, it is crucial to recognize their limitations, particularly concerning their cooling capacity for very low temperatures and their efficiency in poorly ventilated spaces. By understanding the science behind their operation, their optimal working conditions, and their comparative advantages and disadvantages, consumers can make an informed decision. Whether for a quiet office, a portable travel companion, or a specialized medical storage unit, a thermoelectric fridge, when chosen wisely, can indeed operate efficiently and serve your cooling needs effectively.
